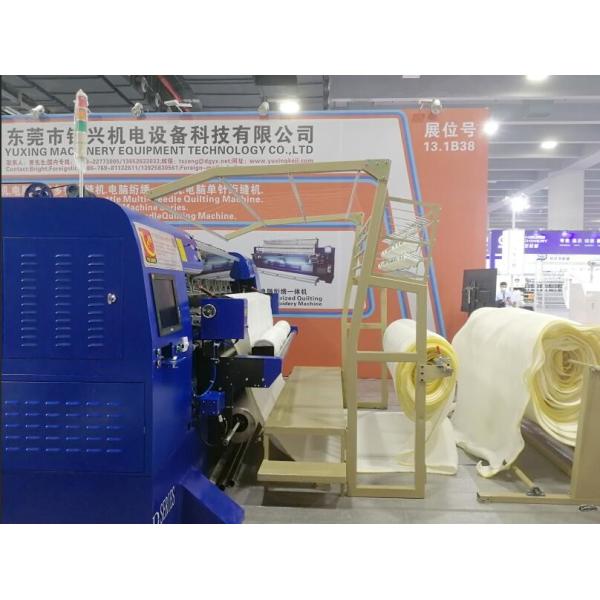

2.5M Automatic Computerized Chain Stitch Quilting Machine

Name: 25M Automatic Computerized Chain Stitch Quilting Machine
Brand: Yuxing
Price: 1 USD

Best 2.5M Automatic Computerized Chain Stitch Quilting Machine wholesale

Brand Name : Yuxing

Model Number : YXN-94-3D

Certification : CE, ISO9001

Place of Origin : China

MOQ : 1 SET

Price : Negotiable

Payment Terms : T/T, L/C

Supply Ability : 20 SETS/MONTH

Delivery Time : 15 Days

Packaging Details : Export packing

Machine size : 5000*1650*2000 MM

Quilting width : 2450 MM

Rolling speed : 600-1200 R/MIN

Weight : 5000 KG

Warranty : 12 Months

After-sales : Online video

Output : 10-200 M/H

Stitch : 2-8 MM

Contact Now

2.5 M Automatic Computerized Chain Stitch Mattress Making Quilting Machine

Quilting Machines Function:

1. Adopt the advanced process design.

2. Needle bar and pressing block take the double rocker avoid the materials be soiled by lube.

3. High rigidity machine body,perfect protecting equipment and steady-going control system.

4. X,Y motors are driven by servo system, and principal axis takes frequency ports system.

5. Testing the working state of all sensors and computer in real time.

6. The auto-stop system when the bottom or upper thread broke by infrared. Auto lift needle and adjust the speed by computer.

7. Auto faults tips for servo motor system and transducer,which is convenient to eliminate problems.

8. 360°quilting and limitless multi-span and independent quilting.

9. Steady running, high speed, low noise, very thick material with precise quilting.

10. Have ringing notice when start machine.

Specification:

Product Name	Computer Non-shuttle (chain stitch) Multi-needle Quilting Machine
Model	YXN-94-3D(3"+3")
Size(LWH)	500016502000mm
Weight	6500kg
Quilting width	2450mm
Needle bar space	76.2,76.2(3"+3")
Quilting thickness	80mm
Rolling speed	600-1200 r/min
Output	10-250 m/hour
Needle type	#21-#24
X-axis movement	410mm
Needle space	25.4mm
Stitch	2-8mm
Rated voltage(AC)	380V/50HZ,/220V/60HZ
Power	7.5KW

Pattern Show
2.5M Automatic Computerized Chain Stitch Quilting Machine

2.5M Automatic Computerized Chain Stitch Quilting Machine
